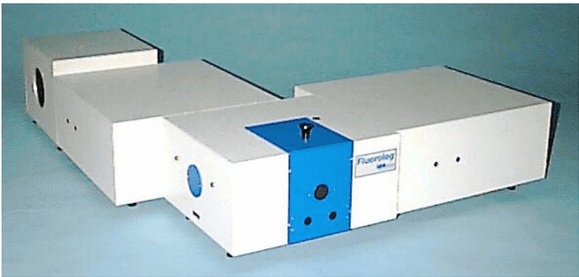

Fluorolog - 3

Description of the Instrument

The device is designed to produce emission spectra, excitation spectra, measurements of the lifetimes of excited states, to study the molecular dynamics in solution. Double monochromators in the excitation and emission channels, heavy duty xenon lamp as the light source and the detection system operates on the basis of accounts of individual photons, can achieve the unique sensitivity and signal/noise ratio. Device equipped with fluorescence lifetime measurement based on time-correlated single photon counting (TCSPC). It can measure luminescence decay from 0.1 ns to a few seconds.

Technical Specification

Make

HORIBA

Model No.

FLUROLOG-3

Source

450 W CW Ozone-free Xenon arc lamp (250 to 2500 nm) Optics. All reflective optics for high sensitivity at all wavelengths, and for microsamples.

450 W CW Ozone-free Xenon arc lamp (250 to 2500 nm)

Monochromators

Czerny-Turner design with plane gratings for optimized focus at all  wavelengths and minimum stray light

Excitation grating

1200 groove/mm blazed at 330 nm

Emission grating

1200 groove/mm blazed at 500 nm

Bandpass

0 to 30 nm (single mono, 1200 gr/mm grating), continuously adjustable 0 to 15 nm (double mono, 1200 gr/mm grating), continuously adjustable

Wavelength Accuracy

± 0.5 nm

Integration Time

1 ms to 160 s

Base detector

Photomultiplier R928P, spectral coverage 200 to 870 nm

Reference Detector

UV enhanced silicon photodiode

Water Raman S/N

> 30,000:1 RMS (> 15,000:1 FSD)

TCSPC Lifetime Options

Lifetime range with standard detector

< 150 ps to 1 s

Lifetime range with optional PPD detector

< 25 ps to 1 s

Lifetime range with suitable laser and detector

< 5 ps to 1 s

Phosphorescence Option

 < 10 μs to >10 s

Mode Requirement

Steady state fluorescence , Emission / Excitation and TCSPC

Sample Nature & Sample Requirement

Nature of Sample : Liquid / Powder / Film
Powder : 500 mg
Liquid : 10 ml
Film : 20 micron thickness x (1.5 cm x 1.5 cm)
